Hitching a gooseneck trailer alone is the part of every haul most horse owners dread. You creep the truck backward, hop out to check the gap, creep again, climb into the bed to drop the coupler over the ball, and then second-guess whether it actually latched. The Quick Coupler™ by Trailer Gear, Inc. was built to erase that whole routine. It is a rugged, heavy-duty gooseneck coupler engineered so the trailer guides itself onto the ball and locks on its own — so you can hook up confidently, even when there is no one around to spot you.

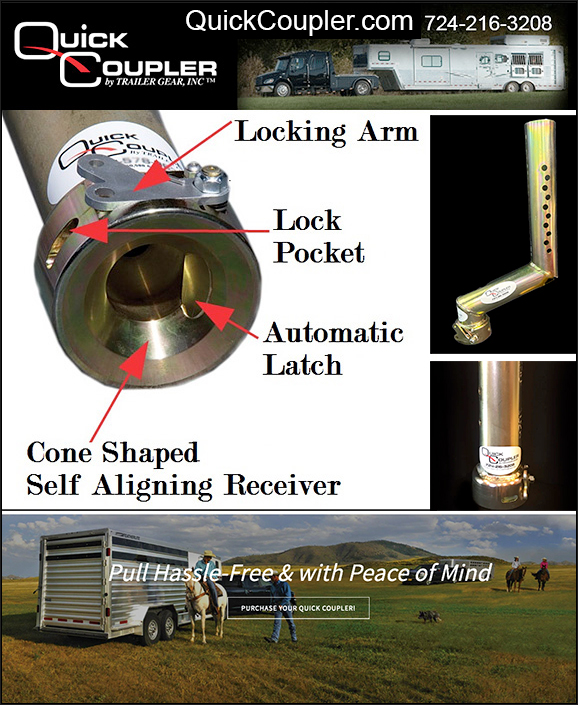

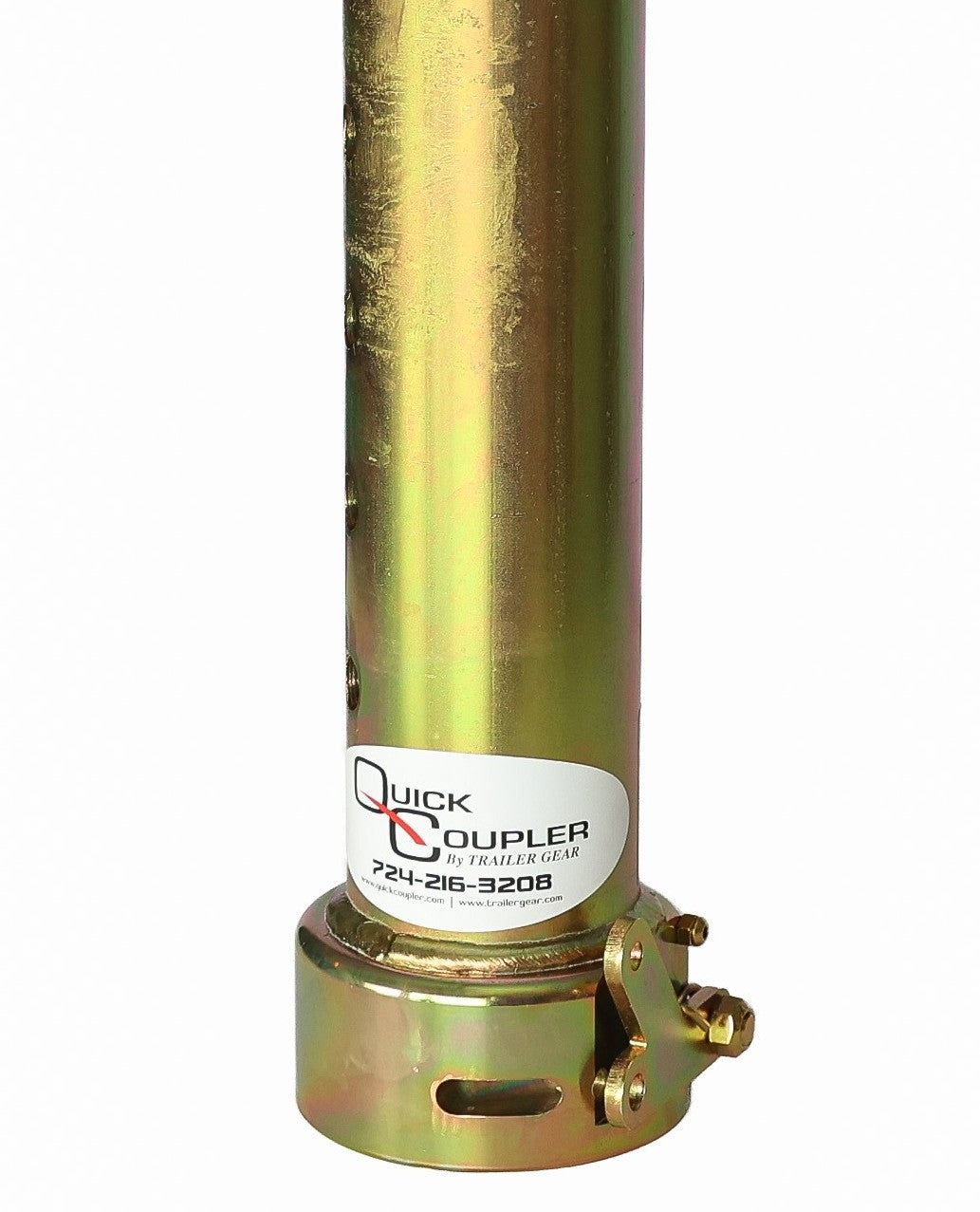

The heart of the design is a cone-shaped capture area with a full 5½-inch opening. Instead of demanding a pinpoint approach, the cone simply “funnels” the hitch ball into the perfect coupling position. You only have to get close — lower the trailer and the wide mouth draws the ball to dead center every time. Because the capture cone does the fine alignment for you, the Quick Coupler can be adjusted down to a 3.5-inch minimum height and requires far less back-and-forth maneuvering of the truck to line things up. What used to take a dozen tries and a second set of eyes becomes a single, smooth drop.

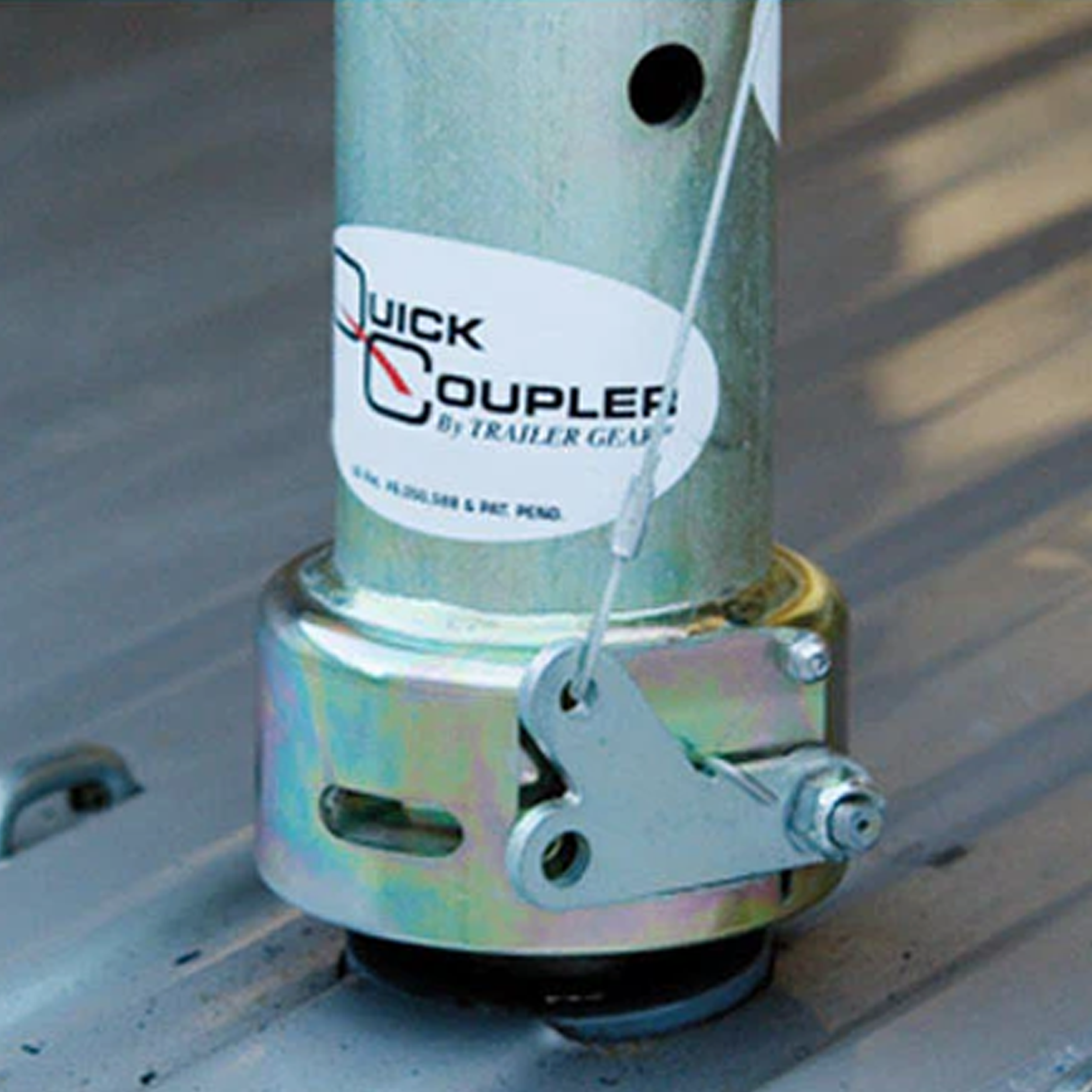

The Quick Coupler automatically latches the moment it is lowered onto the ball — there is no reaching into the truck bed to throw a handle and no driving off wondering whether you remembered to secure it. A cable-release kit, routed in the direction of pull, lets you unlatch from a comfortable standing position when it is time to drop the trailer. The result is fewer trips climbing in and out of the bed, fewer chances for a missed latch, and a hookup you can trust every time you pull a load of horses down the road. Every Quick Coupler rides on a 2 5/16-inch ball, is manufactured in the USA, and is backed by a limited lifetime warranty.

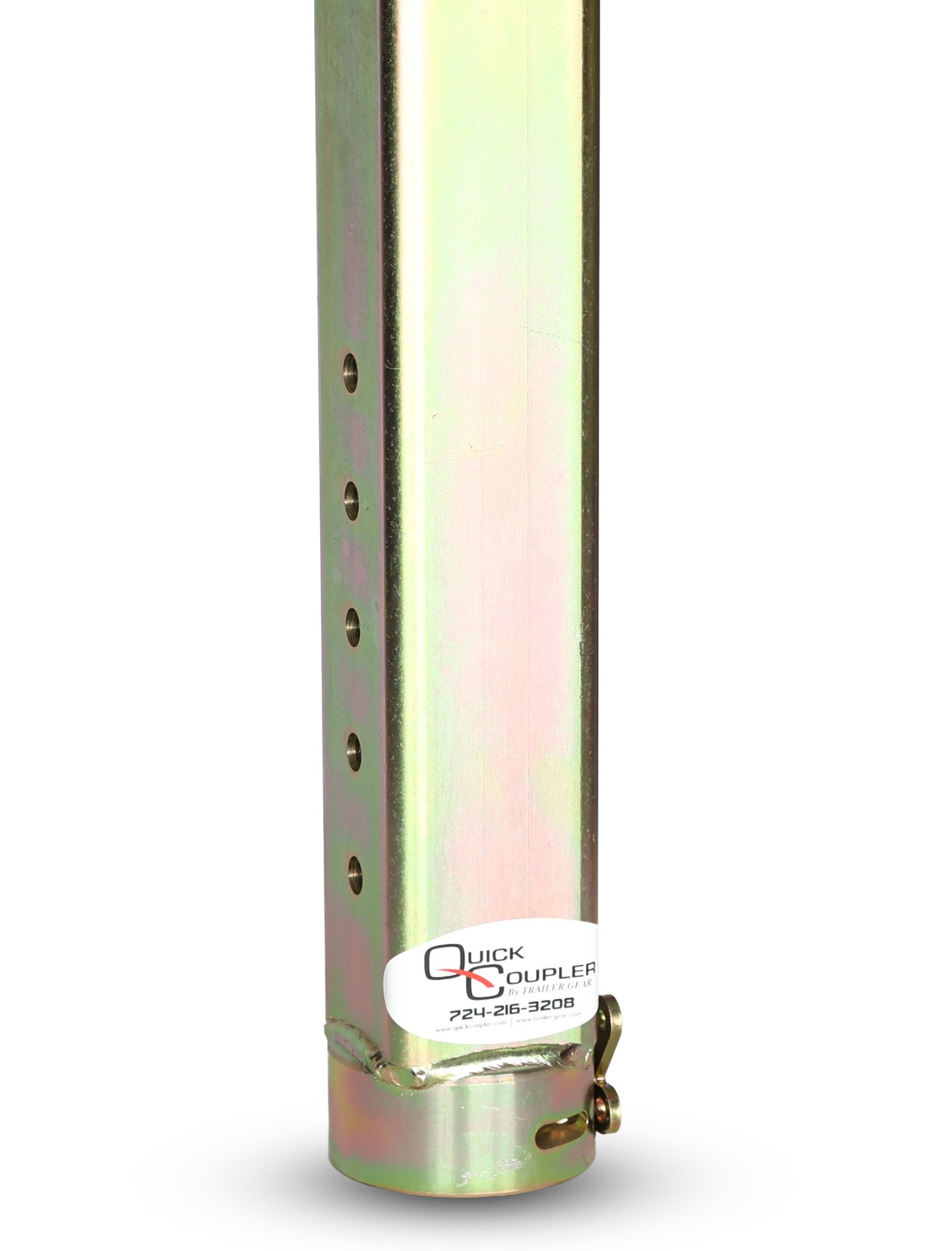

The Quick Coupler is made for horse, livestock, cargo, racecar-hauler, and flatbed commercial gooseneck trailers, with models to match different tube sizes and weight ratings. Round-tube versions are offered in 10K and 12K configurations, square-tube versions in 4-inch and 4.5-inch sizes, plus a 5-inch offset option, with capacities reaching up to a 12,000-lb gross tongue weight and 30,000-lb gross trailer weight. Installation is a straightforward swap: measure the height of your existing coupler, loosen the jam nuts and set screws, slide the original out, drop the Quick Coupler into the receiver tube at your marked height, mount the cable-release hardware, and grease the fitting. A wrench, a pencil, and a drill are all you need to get started.
It is a heavy-duty replacement gooseneck coupler that self-aligns onto the hitch ball and latches automatically. It is designed for horse, livestock, cargo, racecar-hauler, and flatbed commercial gooseneck trailers, uses a 2 5/16-inch ball, is made in the USA, and carries a limited lifetime warranty.
A cone-shaped capture area with a full 5½-inch opening funnels the hitch ball into the correct coupling position. You only need to get the trailer close before lowering it — the cone draws the ball to center automatically, eliminating repeated hookup attempts.
Yes. The coupler automatically latches when it is lowered onto the ball, so there is no need to climb into the truck bed to secure it by hand and no driving off unsure whether it locked. A cable-release kit lets you unlatch from a standing position.
That is the core purpose of the design. Because the cone self-aligns and the coupler latches on its own, solo hitching becomes practical — you do not need a second person to guide you onto the ball or to confirm the latch.
Quick Coupler offers round-tube models in 10K and 12K configurations, square-tube models in 4-inch and 4.5-inch sizes, and a 5-inch offset version. Weight ratings reach up to a 12,000-lb gross tongue weight and 30,000-lb gross trailer weight, depending on the model.
It is a direct swap for an existing gooseneck coupler. Measure the height of your current coupler and mark the same height on the Quick Coupler, loosen the jam nuts and set screws to remove the old one, slide the Quick Coupler into the receiver tube and orient the locking arm toward the direction of pull, tighten the set screws and jam nuts, install the cable-release hardware, and grease the fitting. A wrench, a pencil, and a drill are the only tools required.
Yes. The Quick Coupler is manufactured in the USA by Trailer Gear, Inc. and is backed by a limited lifetime warranty.
The Quick Coupler can be adjusted down to a 3.5-inch minimum height, and the full 5½-inch capture cone means far less truck maneuvering is needed to line up with the trailer.
