The Reveal 4-N-1ORIGINAL Ground Prep Tool Since 1989!is a rugged hard working tool designed to make arena preparation and maintenance easier and less time consuming.

About Our Company

D.J. Reveal, Inc.The Reveal 4-N-1 is designed, manufactured, and marketed by Don Reveal as a family business since 1989.We understand the ground finishing process like no one else, and have developed the ultimate ground prep tool to meet your needs like no other tool. The unit is made in various sizes to suit your needs, in hitch categories 1, 2 and 3 to match your equipment. Don't be fooled by imitators, go with the Original, Still the Best, the Reveal 4-N-1.

The Reveal 4-N-1 was originally designed with the landscaper in mind, and many landscapers and sod farmers are using the unit to prepare seed beds and ready the ground for laying sod. Soon the horse owners discovered it worked perfectly to keep their arenas in good condition, with a minimum of time and effort. Virtually anyone working the ground can do it better and with less effort on many different types of materials including gravel (driveways), sand, clay, dirt, rubber-added, etc. The Reveal 4-N-1 is the only tool endorsed by the NBHA and the ANHA.

Is It True That The Reveal 4-N-1 Does The Work Of Several Tools?
Yes and this is why it is SO popular! The Reveal 4-N-1 has the capabilities of multiple toolswithout the hassle and time required to hook and unhook several pieces of equipment. Because of the multiple functions that are hydraulically operated, this one tool allows you to control the situation without being limited to a single function piece of equipment, all from the comfort of your tractor seat. Our unit is available in various sizes and in hitch categories 1, 2, and 3 to match your equipment. Anyone working the ground can get better results with less effort by using the reveal 4-n-1 on a variety of materials including: sand, clay, soil, rubber-added, and gravel (driveways). More About The Amazing Reveal 4-N-1
The Reveal 4-N-1 is a rugged hard working tool designed to make arena preparation and maintenance easier and less time consuming. We offer five different models for you to choose from depending on your needs:

Regular Model - adaptable to smaller tractors (23hp- 4wd - 32hp- 4wd) with all the same capabilities of the other models (weighs 320 lbs less than the heavyweight)

Heavyweight Model- used with larger tractors (50hp-130hp) used to move heavier soils and /or the need to move more soil at a time

Short Model - used in tighter working areas - having only has one leveling channel it shortens the unit by two feet

Wheel Unit - allows unit to be used as a land plane, which makes leveling a lot easier, as well as maintaining that level. Great when you have multiple operators. Wheel unit is necessary to use laser equipment.

Laser Unit- adaptable with wheel unit - provides precise slope on job sites - quick and easy application with precise leveling of up to 5% accuracy. This unit is excellent for custom arena work.

What Makes The Reveal 4-N-1 Different From The Competition?

Our product is different from our competitors because it has an easy 3-point hook-up and more functions and capabilities readily changeable by hydraulic control. Here are some other unique features:

• Chisel plow

• Land leveler

• Scraper box

• Harrow pulverizing roller

What' so great about our product is that even with all these functions it is still reasonably priced.

Being a multi-functional tool it can be used also for driveways, landscaping, no-till farmland and drainage solutions, parking lots and even snow removal.

Is There A Watering Kit That I Can Add For Dust Control?

You bet! Our Water Kitcan be mounted to the 7' and 8' models (the base is not wide enough to mount on the 6' model) at time of purchase or easily mounted at a later time. It has two 65-gallon water tanks operated by a 12-volt electric water pump. The electric switch easily mounts on your tractor with a magnetic back. The spray boom allows you to put water where you need it at a 10-gallon per minute flow rate. Excellent to control dust and maintain consistent moisture control for long periods.

This product is very easy for both men and women to use and how often you need to use the water option depends on temperature, airflow, and arena usage. The type of footing and the discipline of the horses will also determine the amount. What makes our product different from the competition is that it is very convenient to use and easy to maintain moisture and is designed specifically for the Reveal 4-N-1.

Order Your Reveal 4-N-1 And Water Kit Today!

The Reveal 4-N-1 and Water Kit are the ultimate arena and ground prep tools that no arena should be without! The Reveal 4-n-1 is sold and used throughout the United States and internationally (Canada, Puerto Rico, Dominican Republic, Venezuela, Mexico, Italy, and Guatemala) with great success for arenas, gravel driveways, landscaping, erosion repair, agricultural use, ball field maintenance and much more... horse properties use it both inside and outside the arena to keep their grounds in top condition! Easy to use and maintain, these products will ensure proper footing for your horse, so don't wait-- Call US today!

---

What does the Reveal 4-N-1 actually combine into one pass?

The Reveal 4-N-1 puts the work of four separate ground tools onto a single three-point implement, so you never hook and unhook a string of equipment to finish one arena. In order, the tool runs a row of chisel plows, a leveling box built from two angled channels, a staggered harrow beam, and a spiked roller. Because the functions are hydraulically operated, the operator controls every adjustment from the tractor seat instead of climbing off between passes. As the company puts it, "Reveal 4-N-1 is the only tool you need to do it all."

Who builds it, and how long has the family been at it?
The Reveal 4-N-1 is designed, manufactured, and marketed by D.J. Reveal, Inc., the family business behind "The ORIGINAL Ground Prep Tool Since 1989." Don and Janet Reveal built the company through hard work and attention to customer service, and since Don's passing in 2009 the family has continued operating it with the same friendly, professional service. The shop is located in Mt. Orab, OH 45154, and the tool is sold and used across the United States and internationally, including Canada, Puerto Rico, the Dominican Republic, Venezuela, Mexico, Italy, and Guatemala. Their standing invitation to skeptics is simple: "Ask the person who owns one."

How do the chisel plows, box, harrow, and roller each do their job?

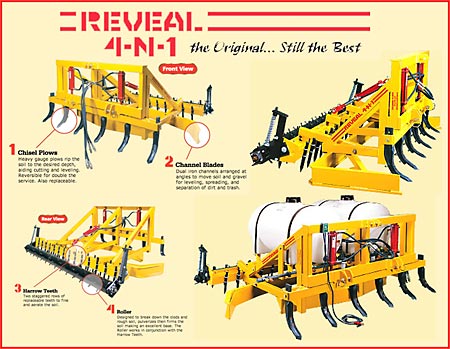

The chisel plows rip the ground from 0" to 7 1/2" deep, with reversible teeth in 2" wide standard or hard-faced versions plus 6", 8", or 12" sweep options. The box uses two angled channels — a front channel that cuts off high material and pushes it outward, and a rear channel that catches and returns it to center — and its rear wings extend 6" past everything else so you can pull footing back from the rail without leaving the usual ridge. The harrow beam (a 4"x6" or 6"x6" beam with two staggered rows of teeth) combs and settles the worked material, factory-set to 3" deep and hydraulically raised for larger stone. Finally, the 5" or 6" diameter roller, studded with 1/2"x1" steel pins in a spiral pattern and spring-loaded against damage, breaks remaining clods and firms the surface.

Which model and hitch category fits your tractor?

The Regular is the base model — big enough for big jobs but easy to handle with modest-sized tractors — while the Heavyweight is built for larger-HP tractors and the Short Model suits tighter spaces. Units come in hitch categories 1, 2, and 3 to match your equipment, and a Wheel Model adds rear wheels on an independent hydraulic ram for land-plane-grade leveling. At the top sits the Ultimate Laser Model, whose laser control system is accurate to within 1/4" in 1000', runs manually or fully automatic, and operates from a standard 1/2" remote outlet. Across all of them the chisel plows raise and lower on dual hydraulic rams while the harrow teeth and roller move on a centrally mounted cylinder.

What surfaces and disciplines is it suited for?

Because the Reveal 4-N-1 can either dig the ground up or firm it down, it adapts to whatever footing a rider wants — Barrel Racers, Cutters, Ropers, Hunter Jumpers, and Dressage all condition arenas differently, and one tool serves them all. It performs on a variety of materials including sand, clay, soil, rubber-added blends, and gravel driveways. Beyond horse arenas it handles driveways, agricultural ground, erosion repair, ballfield maintenance, landscaping, and waterways. The Reveal 4-N-1 is the only tool of its kind endorsed by the NBHA (Official Tool of the National Barrel Horse Association) and the ANHA.

How do you add water, options, or buy one?
The optional Water Kit (for 7' and 8' models only, and mountable on units already in use) carries two 65-gallon tanks for 130-gallon capacity, two 12-volt pumps, drip-free positive shut-off valves, a tractor-mounted magnetic control switch, and roughly a 10-gallon-per-minute flow rate to lay moisture exactly where dusty footing needs it. Other options include the Wheel Kit and double-action ratchet jacks in place of hydraulic cylinders, and all replacement parts are available directly from the company. To buy, use the Quick Quote form or call D.J. Reveal, Inc. at (937) 444-2609 (fax, ); rentals are available through Gap Power Rentals in Gap, PA and Imagine That Tool Rental in Wilmington, OH.
