EQ Systems Hydraulic Jack For Horse Trailers

EQ Systems Hydraulic Jack For Horse Trailers
If you are a horse person who hauls their horses to shows, or out for trail rides, or camping or trips to the vet… you need the EQ Systems to help you disconnect from your horse trailer! Nobody wants to spend a lot of time manually cranking their trailer on and off the truck, not when you have the option of just simply pushing a button! Spend less time cranking and more time riding— and you’ll start to enjoy hauling your horses as never before!

What sets EQ Systems Apart From Other Hydraulic Lifting Systems?
What sets us apart from our competitors is the focus on the little things, such as weather proof connectors, nylon braided harness as opposed to plastic auto loom. Even the options available to make the customers installation easier from mounting brackets designed to fit specific horse trailer manufacturers to the industry exclusive hand pump override insuring you are not stuck because of a dead or low battery. Perhaps the most important thing that sets EQ Systems apart from our competitors is the service you receive after the fact. EQ Systems has a dedicated service tech staff to help if any issues do arise, and a network of dealers across the nation available.

Is It Easy For Women To Use?

EQ Systems introduced hydraulic jacks to the horse trailer industry knowing that a large percentage of the end users are women. Now instead of having to manually crank the trailer off or on the hitch, within seconds you can have the trailer off or on with just pushing a button. You’ll love the freedom and the stress relief— you’ll be unloading your horses, while your friends are still jumping up and down on their hitch trying to disconnect!

What Does It Take To Install?
Depending on how the manual jacks are mounted, installation should only take 2-4 hours and then you can enjoy it for many stress free years to come! In a lot of cases it is as easy as unbolting the manual jacks on the trailer, and bolting the new hydraulic jacks in their place. Then it is a matter of hooking up the hoses from the pump to the legs, running the wires to the battery and running the system several times to purge, or get all the air out of it.

How Do I Know If I Need The “Single” or the “Dual" What is the difference?
The general rule of thumb for determining if you need a dual or single leg system, is based on what manual system was on the trailer. A single leg system is going to be used for the basic purpose of lifting and lowering the trailer off and onto the ball in your truck. With the dual leg system, the main purpose is also the lifting and lowering, but it also provides a more stability at the front of the trailer since each leg is mounted towards the ends of the front wall as opposed to the center of the front wall like the single leg system. Don’t worry, just talk to us by phone and we’ll make sure you have the right system for you!!

What Advantages Do The Auto Level Option Offer To Horse Owners?

For the horse trailer owner who wants all the bells and whistles, EQ Systems offers both a 4 point and 6 point auto level system. Just because you have to park out in an uneven field, that does not mean your trailer has to be unlevel. With just a touch of a button the EQ Systems Auto Level system will have your trailer level and stabilized.

What Do These Systems Cost?

Remember, if you have a horse business, this equipment is tax deductible! Our systems start from an affordable $895 up to $1655—with several prices in between... depending on which system you decide upon. The EQ System can make all the difference in stress, and comfort to both you and the horses you are hauling.

So What Do Horse Owners Say About Their Equalizer Systems?

Let EQ Systems Hydraulic Lifting and Leveling System Change Your Life— Forever!

No more sweating in the sun or shivering in the cold as you jump up and down endlessly on your hitch trying to disconnect or worry as you try to level your horse trailer in a camp ground. The EQ Hydraulic Lifting and Leveling System and the Auto Leveler will bring you peace of mind— so you can enjoy your horses and get on with your adventures. Call us today— we’ll help you every step of the way.

---

---

What exactly is the EQ Systems hydraulic jack for horse trailers?

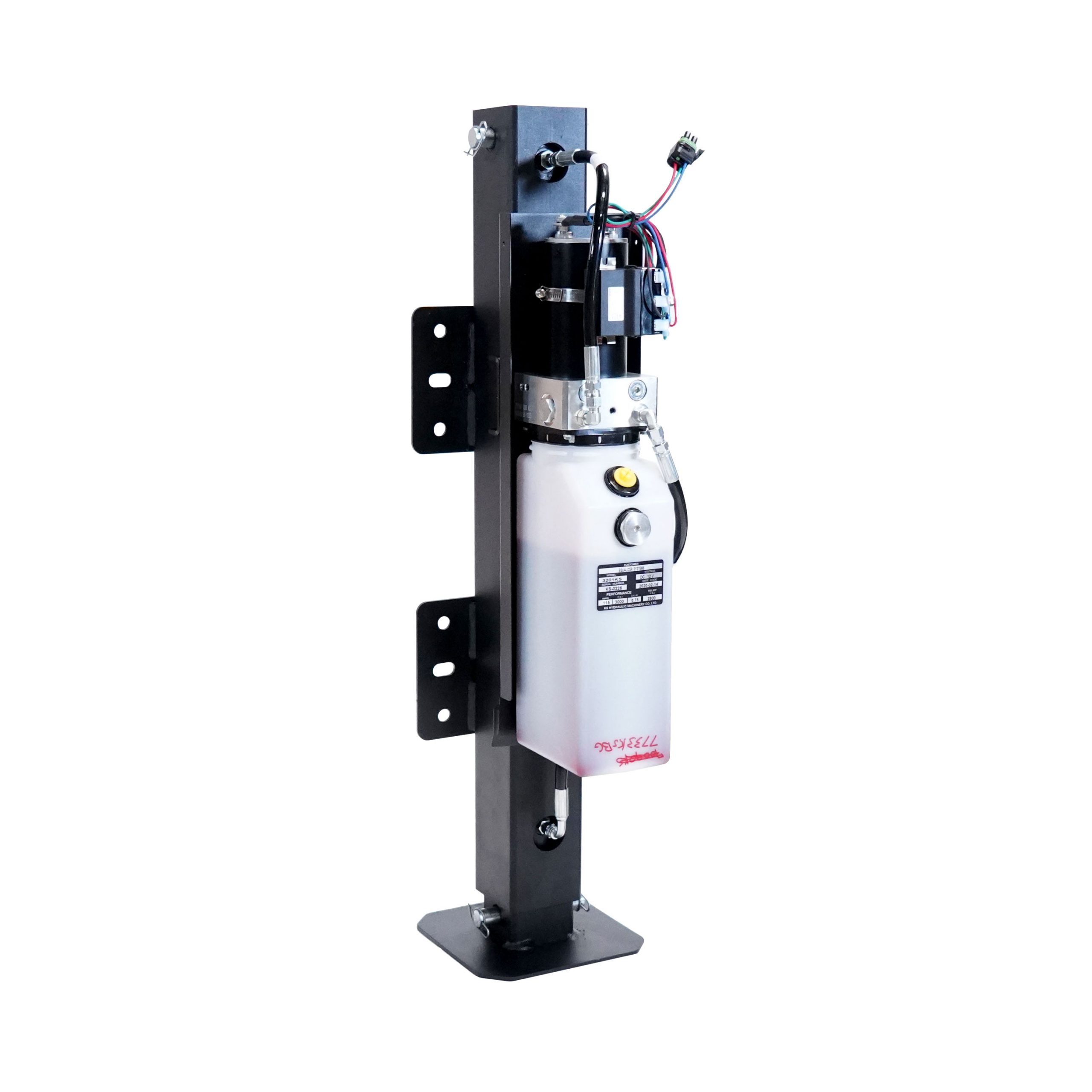

It is the EQ Systems® AJ Series automatic hydraulic trailer jack, a powered lifting leg that replaces the manual hand-crank jack on a gooseneck or bumper-pull horse trailer. Instead of cranking, you turn a weatherproof, key-activated control switch and the 12V DC hydraulic pump raises or lowers the trailer with smooth, quiet operation. Each leg is built from heavy 3.5" x 3.5" square tube-in-tube steel and bolts directly to the trailer's center tube, so disconnecting from your truck happens in seconds rather than minutes of muscle work.

Who makes the EQ Systems jack and where is it built?

EQ Systems® is an EQ United company headquartered at 19300 Grange St, Cassopolis, MI 49031, reachable toll-free at or locally. The company designs and manufactures its lifting, leveling, and stabilizing systems in Michigan, proudly carrying a Made in USA designation. Beyond horse trailers, EQ engineers hydraulic and electric systems for motorhomes, motorsports trailers, and livestock and gooseneck rigs, so the same proven engineering that levels RVs and race haulers goes into the equestrian line.

What models, capacities, and prices does the AJ Series offer?
The equestrian line is built around four AJ Series configurations. The single-leg AJ 1/20 lifts 8,000 lbs with a 20" stroke at $965, and the single-leg AJ 1/24 lifts 8,000 lbs with a 24" stroke at $995. For heavier living-quarters rigs, the dual-leg AJ 2/24 delivers 16,000 lbs of capacity with a 24" stroke at $1,795, and the AJ 2/24 with 2-Function Selector adds independent control of each leg at $1,895. EQ also builds jack sizes ranging from 8,000 lbs up to more than 24,000 lbs for the largest trailers.

How does the system actually work on your trailer?

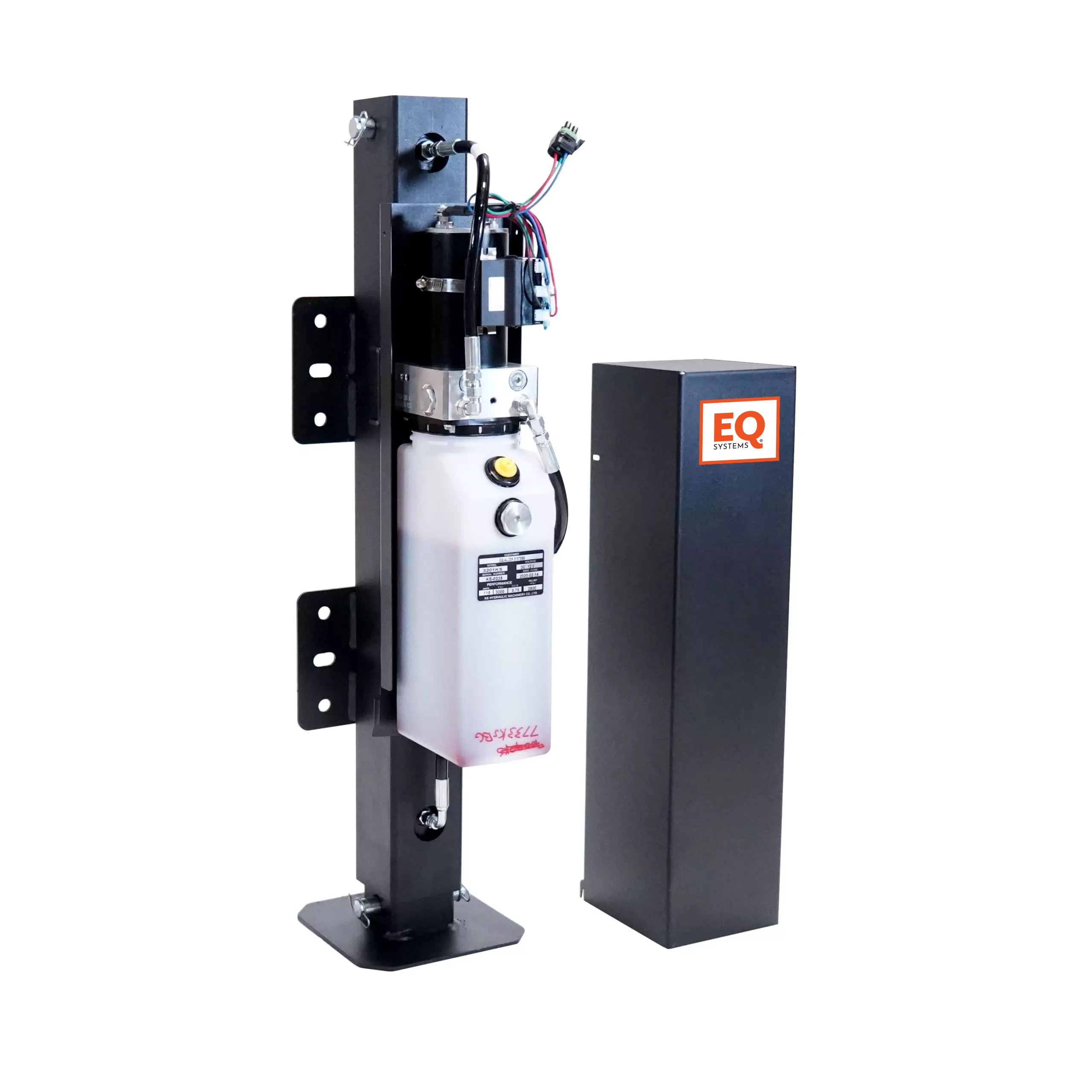

A commercial single-function hydraulic pump drives a 2"-bore cylinder; the AJ 1/24, for example, retracts to 35.5" and extends to 59.5" with its full 24" stroke. You operate it through a weatherproof single-switch gear control with a key, and an optional wireless remote (sold separately) lets you raise and lower from a distance. Critically, a manual override screw drive is built in as a backup, so you can always lift the trailer even if 12V power is unavailable. PVC high-temperature nylon-braid wire harnesses and a steel pump cover let the system stand up to rain, mud, and dust.

Who is this jack right for?

EQ designed it for any horse person who hauls to shows, trail rides, camping, or the vet and is tired of fighting a manual crank. As the company puts it, "anyone who can press a button can now disconnect a horse trailer," which removes the strength barrier that frustrated many women and younger riders. The AJ 1/24 is ideally suited for trailers with living quarters up to an 11' short wall, while the dual-leg 2/24 models suit larger living-quarters trailers that need 16,000 lbs of lift and faster, more stable setup.

How do you buy one and what backs it up?

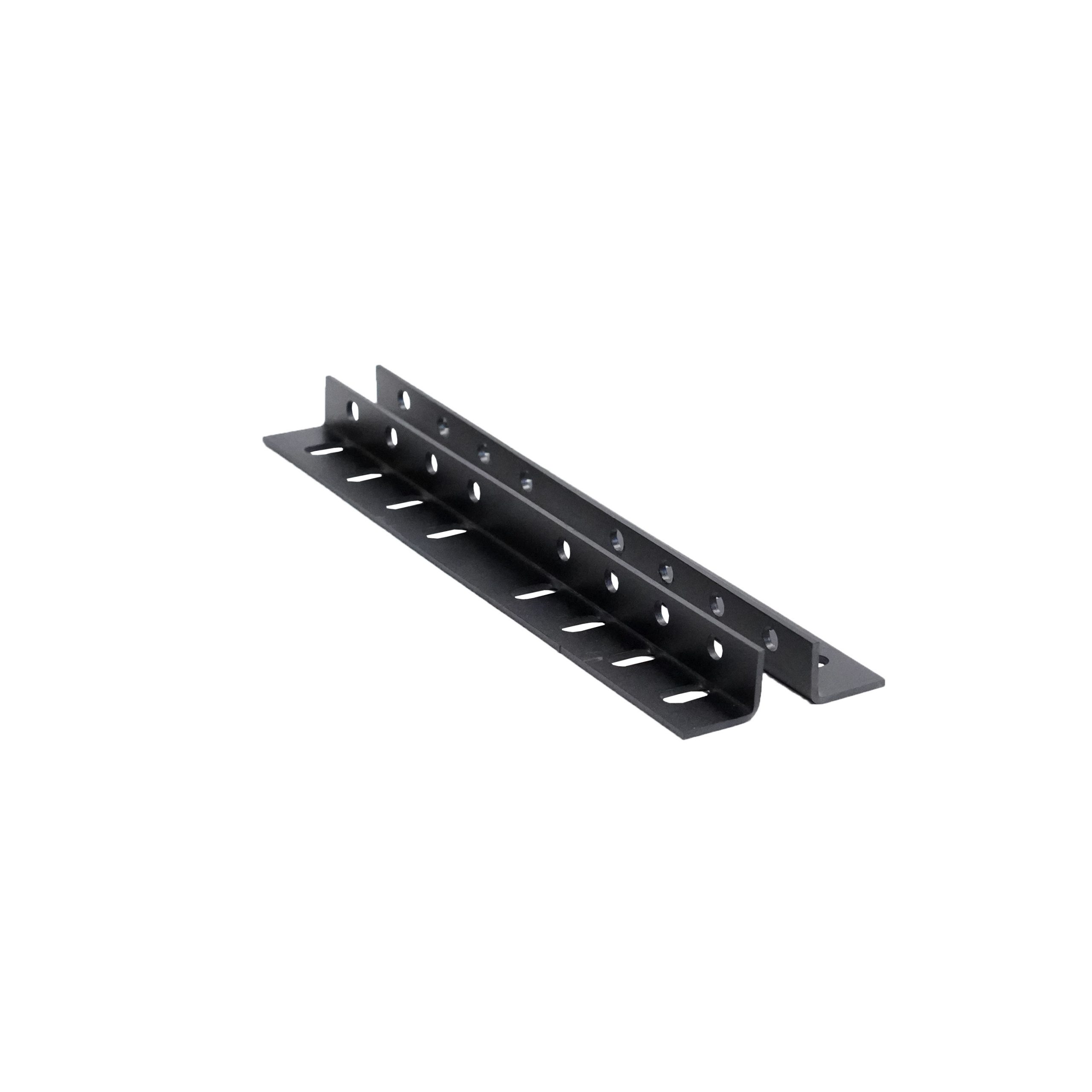

You can purchase directly online through the EQ Systems shop at eqsystems.us, with the AJ 1/24 listed under SKU 8470UPS, or work through EQ's nationwide dealer network. Every jack ships with universal mounting brackets and the weatherproof control, while bolt kits and hydraulic fluid are sold separately; an optional solar panel kit is also available to keep the battery topped off. The AJ Series is covered by a 2-year warranty, with warranty activation handled online, and the system is straightforward to maintain with little more than periodic lubrication of moving parts.
