Red Master Harrow

Red Master Harrow Red Master Harrow is nationally known for its dependability.

Looking for barn equipment tractors that hold up to barn life?

Red Master Harrow

Red Master Harrow is nationally known for its dependability. It lasts longer, because of its high quality craftsmanship and materials.

About Floyd Fain, Owner, Red Master Harrow:

Floyd is passionate about horses and is an experienced team roper. He has a 300 acre cattle/ horse ranch in Texas and knows the importance of great footing, for both performance and safety! Proper footing and groundwork is key in protecting horses and Floyd understands what it takes to keep horses sound with any type of ground or footing. He has worked arenas around the country. Red Master Harrow was developed to offer consistent, superior results. Built to last with satisfied clients coast to coast throughout America!

About RED MASTER HARROW

Setting the standard for excellence throughout the arena equipment industry, the RED MASTER HARROWhas no equal! RED MASTER HARROW is a leading horse arena equipment company in Amarillo, Texas. We at Red Master understand how important it is to properly care for your horse and arena. As horse owners and riders ourselves, we also know how overwhelming it and expensive it can be. Our arena drags, watering equipment and horse-training equipment are all commercial-grade.Each piece of equipment is designed to maximize you and your horse's safety and performance.

We have equipment for the following equine disciplines:

Hunter/Jumper
Dressage
Western Performance
Western All-Around
Rodeo
Barrel Racing
Roping
Reining
Training and Performance
Personal or Multi-Purpose

What Are My Arena Drag Options At RED MASTER HARROW?

We have several styles, accessories and models so that every one can have the right model and equipment for their personal needs!

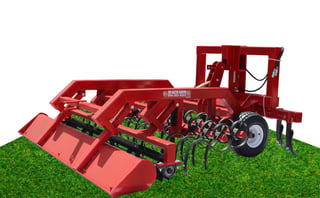

RED MASTER T-Rex: Perfect All-In-One Harrow-particularly multi-use arenas! The Red Master T-Rex was designed for any type of arena, including personal or multi-purpose. We designed this harrow from the suggestions of our customers who wanted a true all-in-one harrow. With the versatility and adjustments built in this harrow, you will never need another arena tool. We designed this harrow from the suggestions of our customers who wanted a true all-in-one harrow. Features:

Ripper
Gauge Wheels
S-Tines
Paddle Wheel
Float Pan

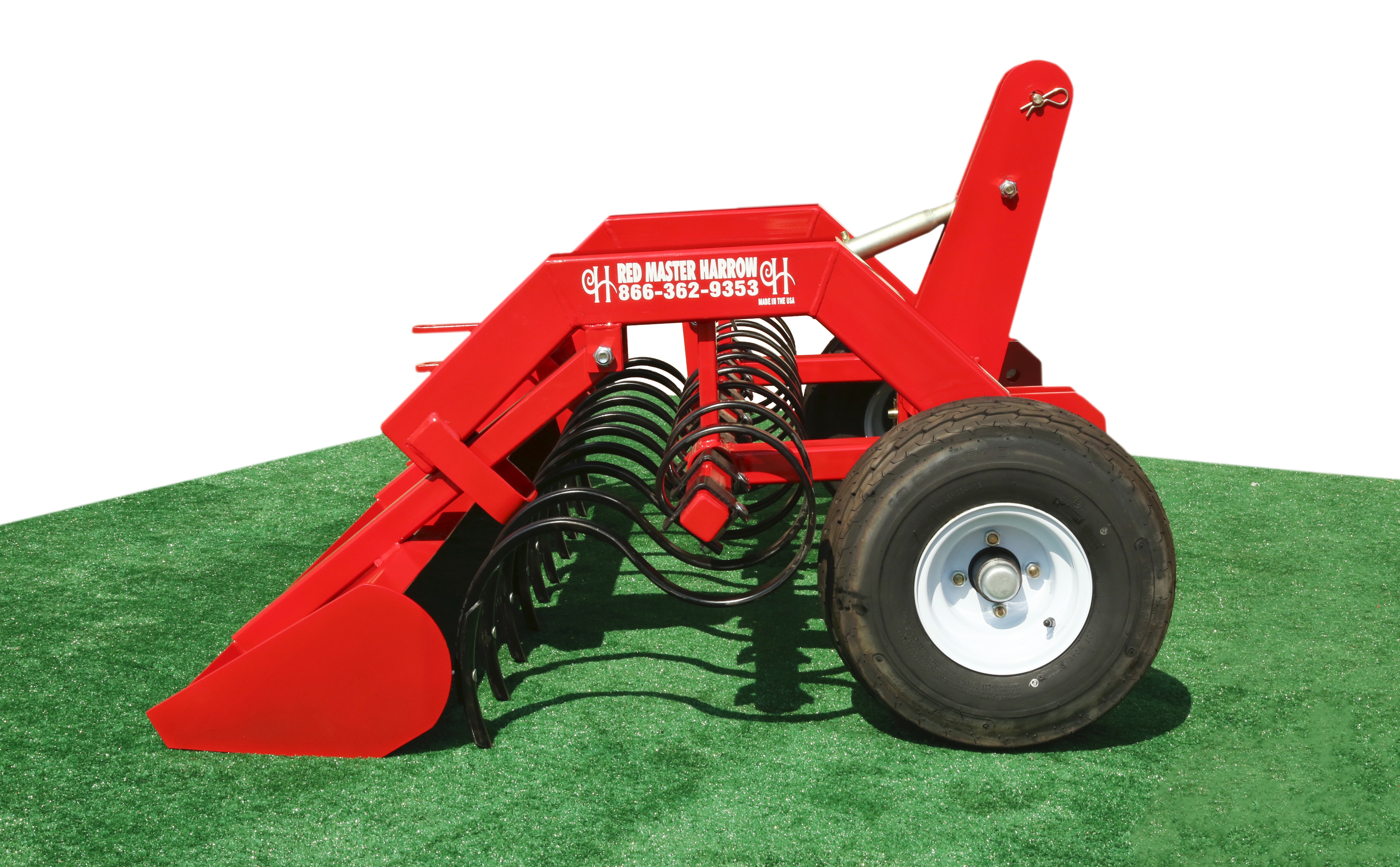

RED MASTER HARROW: Truly, one of the most high-tech horse arena harrow implements on the market today! Red Master Harrow Features:

Spring tooth adds air or “cush” back into your footing without digging into your base materials
Three tire height adjustments - guide wheels and tires control consistency and depth
Float bar levels and compresses the footing to a uniform consistency
4 X 3/16-inch wall thickness structural tubing frame
Double-braced lit brackets
Three-point lift allows operator to back into corners
Adequate ground clearance when lifted for transport
Tips are reversible for extended life
650-point bearings and axle assembly
Red Master Harrow will adjust zero to 3 inches of depth
Equipped with a tow bar to pull the Red Roller
Float pan is 3/16-inch steel gauge with ¼-inch teardrop sides

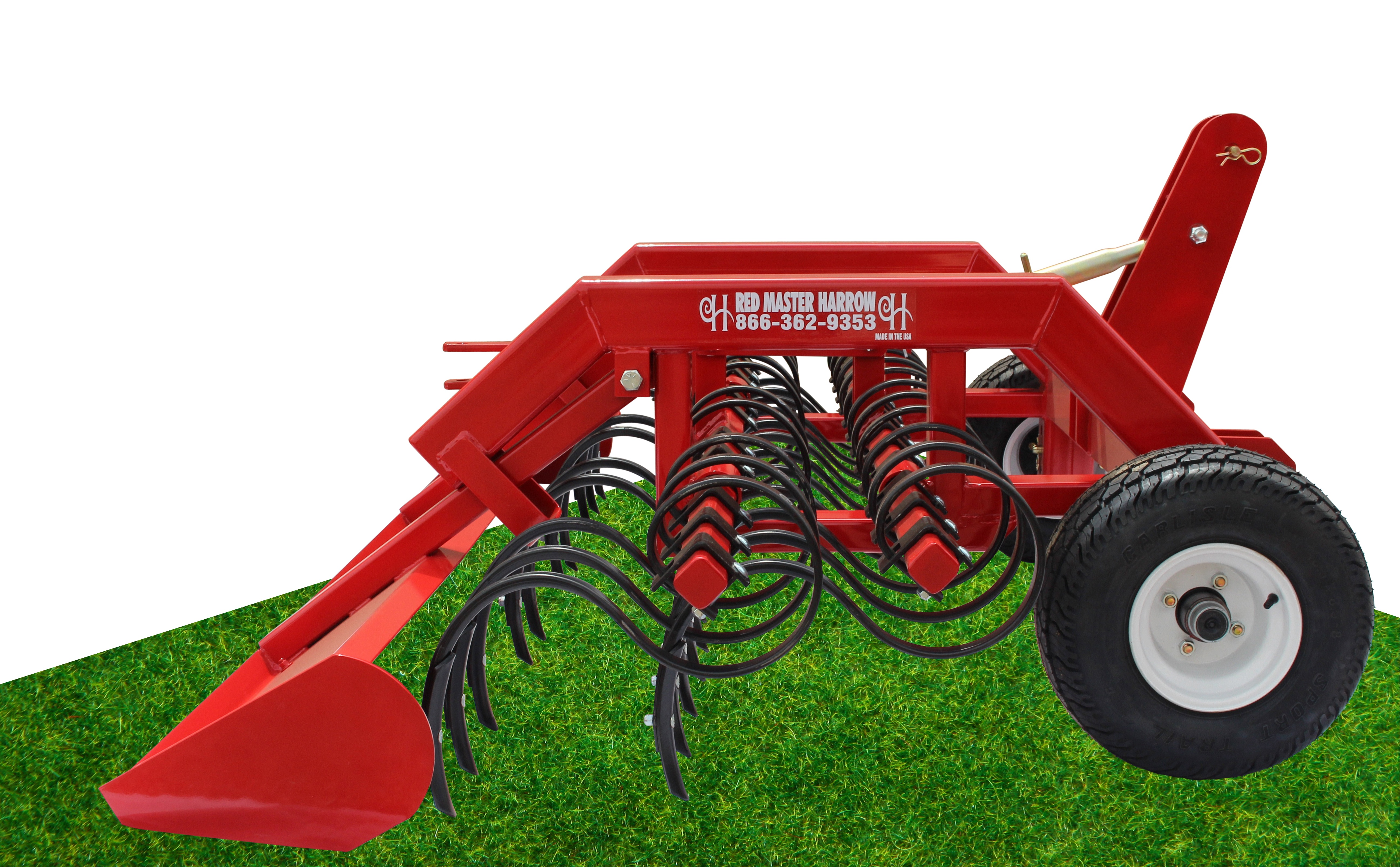

RED MASTER II & III:Perfect for Synthetic Footing — and More!The Red Master II and Red Master III can be used in synthetic, fiber, wood and dirt arenas. Float plan can be removed and replaced with the optional paddle wheel for the different types of footing. The Red Master II & III give added tooth to ground coverage with better spacing for material to pass through. The S-Tines help to add air and “cush” back to the footing.

Features of the Red Master II and Red Master III:

4 X 3/16-inch wall thickness structural tubing
Double-braced lift brackets
Three-point hitch allows operator to back into corners
Tips are reversible (teeth) for extended life
Two rows of s-tines
Adequate ground clearance when lifted for transport
Eliminates crusting, breaks up clods ad smoothes
Guage wheels and tires control consistency and depth
Three tire height adjustments; manufacture settings is in the center hole adjustment
Red Master II adjusts zero to 5 inches of depth
Both rows of spring teeth adjust depth with one tumbuckle, while the 3-point will supply additional depth control
Required HP: 24-26 for 6-ft.; 26-30 HP for 8-ft.: and 38-40 HP for 10-ft. Model
Adjustable float pan is 3/16-inch steel gauge with ¼-inch teardrop sides
Float pan can be removed and exchanged for a paddle wheel option
A tow hitch provides towing capability for the Red Roller

RED MASTER Travel RightThe Red Master Travel Right harrow is designed for synthetic footings. The gauge wheels and tires control consistency and depth. It has three tire height adjustments. Both rows of coil tines adjust the depth with one turnbuckle, while the 3-point supplies additional depth control.

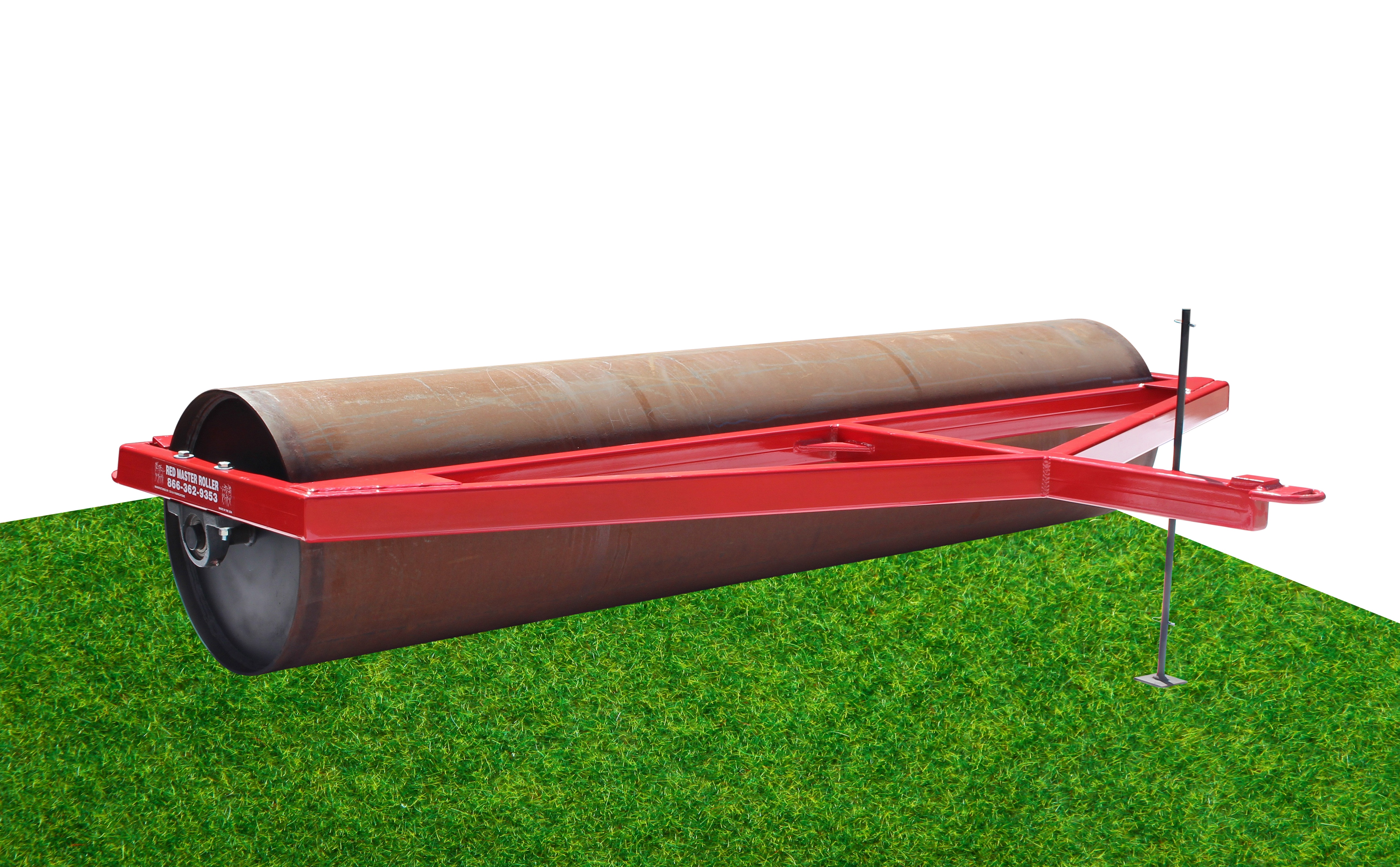

The Paddle Wheel Roller is an eight inch diameter pipe used to tighten up the surface. A tow hitch at the rear of the harrow provides towing capability for the Red Master Roller (a 20" diameter pipe that can be filled with water to achieve proper weight). Coil tines act as a rake to work up the footing surface and will not cut into your base. If footing gets hard packed the ripper option can be added to this harrow to break up even the hardest footings.

But I Just Have an ATV, Can RED MASTER HARROW Help Me?

YES! Some of our clients like to pull with their ATV’s! The Mini-REDis the answer! The Mini Red is for facilities without a tractor. The Mini Red can be pulled behind 4WD ATC, Mule, Gator or any other utility vehicle. It comes equipped with an adjustable float pan and compress the footing to a uniform consistency, while the adjustable spring tooth design adds the air or “cush” back into your footing. The two-tine adjustment allows tips to be raised from footing. The float pan may be used for leveling without accompaniment of the tips. Upon leaving the arena, the float pan and s-tines can be “rotated” from the footing material for a clean ring exit. 4’, 5’, 6’ widths available!

What If I Need Help With Arena Watering?

We have just what you need to keep your arenas as dust free as possible! Our Water Wagoncan easily be used to help with dust control and it fits ALL our units! 500 and 1000 gallon sizes available!

Call RED MASTER HARROW For Your Arena Needs Today!

Join the thousands of happy Trainers, Riders, Rodeo Professionals and Horsemen and Women who enjoy, use and depend upon RED MASTER HARROWto keep all their arenas in outstanding condition. Enjoy seeing your horses perform better and stay more sound on the reliable footing that RED MASTER provides. Call and talk to Floyd today!

Share This Solution

Facebook X LinkedIn Email

The Solution Section

What does Red Master Harrow make?

Red Master Harrow is a horse arena equipment company in Amarillo, Texas, that builds commercial-grade arena drags (harrows), watering equipment, and horse-training equipment. Owner Floyd Fain runs a 300-acre cattle and horse ranch in Texas and has worked arenas around the country, so the equipment is designed by a horseman to maximize footing safety and performance.

What makes the Red Master arena drag different from other harrows?

The adjustable ripper is what sets Red Master apart. A top link attaches the ripper to the harrow and lets you make it as aggressive or nonaggressive as you need, while the harrow stays level and keeps working the ground behind the ripper. Most other arena tools use a fixed ripper that can't be dialed in.

Which Red Master harrow is best for an all-purpose or personal arena?

The Red Master T-Rex is the all-in-one harrow, built from customer suggestions for anyone who wants a single tool for any type of arena, including personal or multi-purpose. It combines a ripper, gauge wheels, S-tines, paddle wheel, and float pan, so with its built-in versatility and adjustments you should never need another arena tool.

Do you have a harrow for synthetic or fiber footing?

Yes. The Red Master II and III work in synthetic, fiber, wood, and dirt arenas, with two rows of S-tines that add air and "cush" back into the footing. The float pan can be removed and swapped for an optional paddle wheel to match different footing types, and the Red Master II adjusts from zero to 5 inches of depth.

What harrow is made for cutting horses and deeper dirt rings?

The Red Master Cutter is based on the Red Master II and built for the deeper depths the cutting industry requires. Its two rows of S-tines are set lower for deeper harrowing, the teardrop sides are cropped to avoid plowing and turn easier, and the frame achieves zero to 6 inches of depth (up to 7 inches with repetitive harrowing and proper moisture). It also performs well in barrel racing, team penning, reining, and rodeo rings.

Can I drag my arena if I only have an ATV instead of a tractor?

Yes. The Mini-RED is built for facilities without a tractor and can be pulled behind a 4WD ATV, Mule, Gator, or other utility vehicle. It comes with an adjustable float pan and adjustable spring-tooth design to add "cush" back into your footing, and it's available in 4-foot, 5-foot, and 6-foot widths.

How much tractor horsepower do I need, and is there a dust-control option?

For the Red Master II and III, the required horsepower is 24-26 HP for the 6-foot, 26-30 HP for the 8-foot, and 38-40 HP for the 10-foot model. For dust control, the Water Wagon fits all Red Master units and comes in 500-gallon and 1,000-gallon sizes to keep arenas as dust-free as possible.

How do I get the right Red Master harrow for my arena, and how do I reach them?

Every sale starts with a friendly interview to understand your needs, situation, horses, and budget, and Floyd and his team match each customer with the right harrow and attachment for their arena. To talk through your arena needs, call Red Master Harrow at 866-362-9353 or visit https://www.redmasterharrow.com.
